PE/PPR Welding Machine (big) Manual Type
Suitable for connecting PE/PPR pipes and fittings with coupling which used for gas and water supply.
Share This Product:
  • Application
  • Feature
  • We do two types of welding machine

    Most of our HDPE pipe butt fusion machine we provide are HYDRAULIC type, but at the same time, we can also provide MANUAL type HDPE pipe butt fusion machine for small diameter:

  • HDPE Pipe Welding Machine (big) - Manual Type

  • HDPE Pipe Butt Fusion Machine - Hydraulic Type

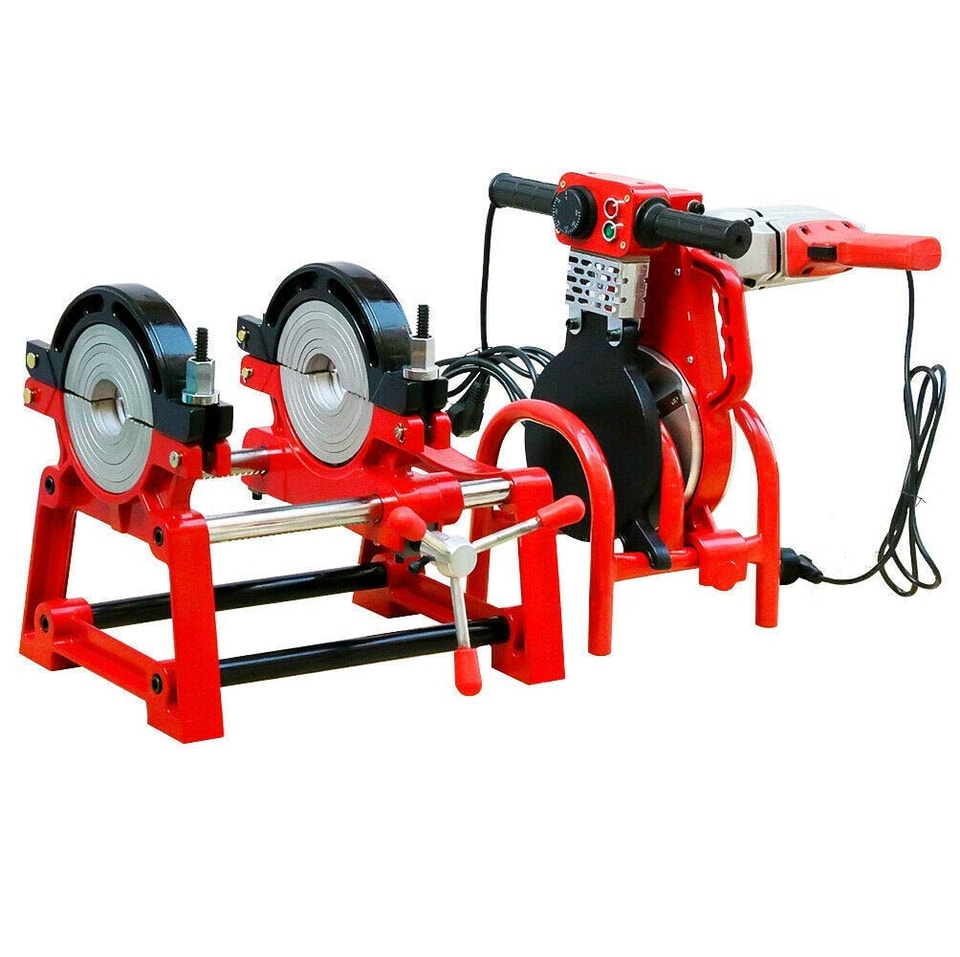

  • RH-D160 HDPE Pipe Welding Machine (Manual)
    Suitable for welding of plastic pipes and or fittings made of HDPE PVDF and MPPcan be operated in any complex work condition.
  • Removable PTFE coated heating plate with separate temperature control system.
  • Electrical planing toxol.
  • Be made of aluminum alloy materiall,simple structure small and delicate.user friendly.
  • 1. Suitable for welding of plastic pipes and / or fittings made of PE, PP, and PPR can be operated in any complex work condition.

  • 2. Consists of basic frame, planning tool, heating plate and support for planning tool and heating plate.

  • 3. Removable PTFE coated heating plate with separate temperature control system.

  • 4. Electric planning tool.

  • 5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.

Product Detail

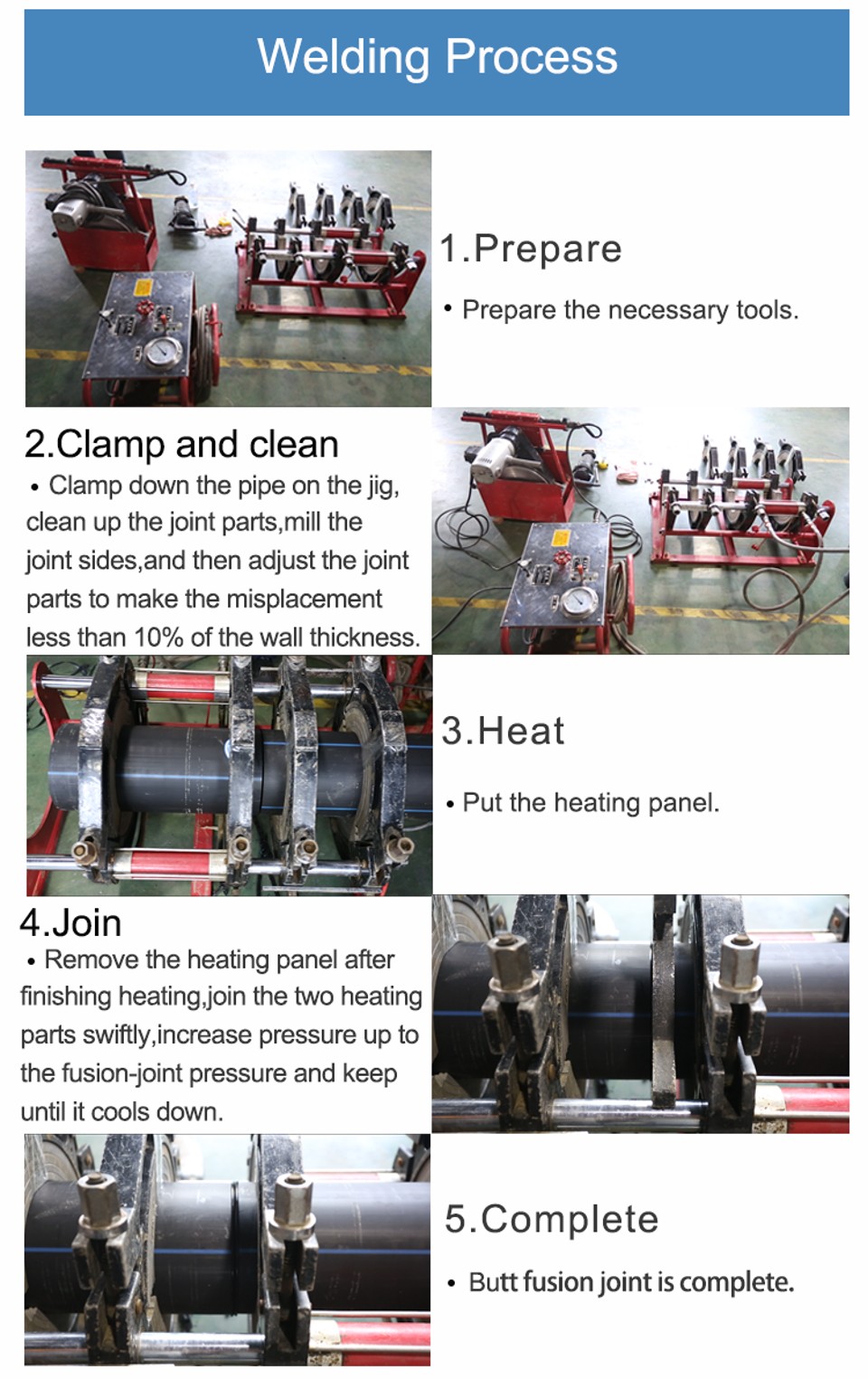

HDPE pipe welding machines are essential tools in the installation and repair of high-density polyethylene (HDPE) piping systems, ensuring secure and durable joints. An HDPE pipe welding machine, also known as an HDPE butt fusion welding machine, operates by heating the ends of two HDPE pipes and joining them to form a continuous, leak-proof connection. This process is highly reliable for creating strong joints capable of withstanding high pressure, which is essential for water and gas distribution systems.


Modern HDPE pipe fusion welding machines offer precise temperature control and efficient fusion cycles, allowing operators to achieve consistent welds. Devices such as the super ego b315 HDPE welding machine exemplify advanced technology, providing robust performance and user-friendly operation suitable for various pipe sizes. Utilizing an HDPE welding machine ensures that projects meet industry standards, providing long-lasting durability in both small and large-scale installations.


Whether for pipeline construction, repair, or extension, the quality and reliability of HDPE butt fusion welding machines contribute significantly to the success of HDPE piping systems

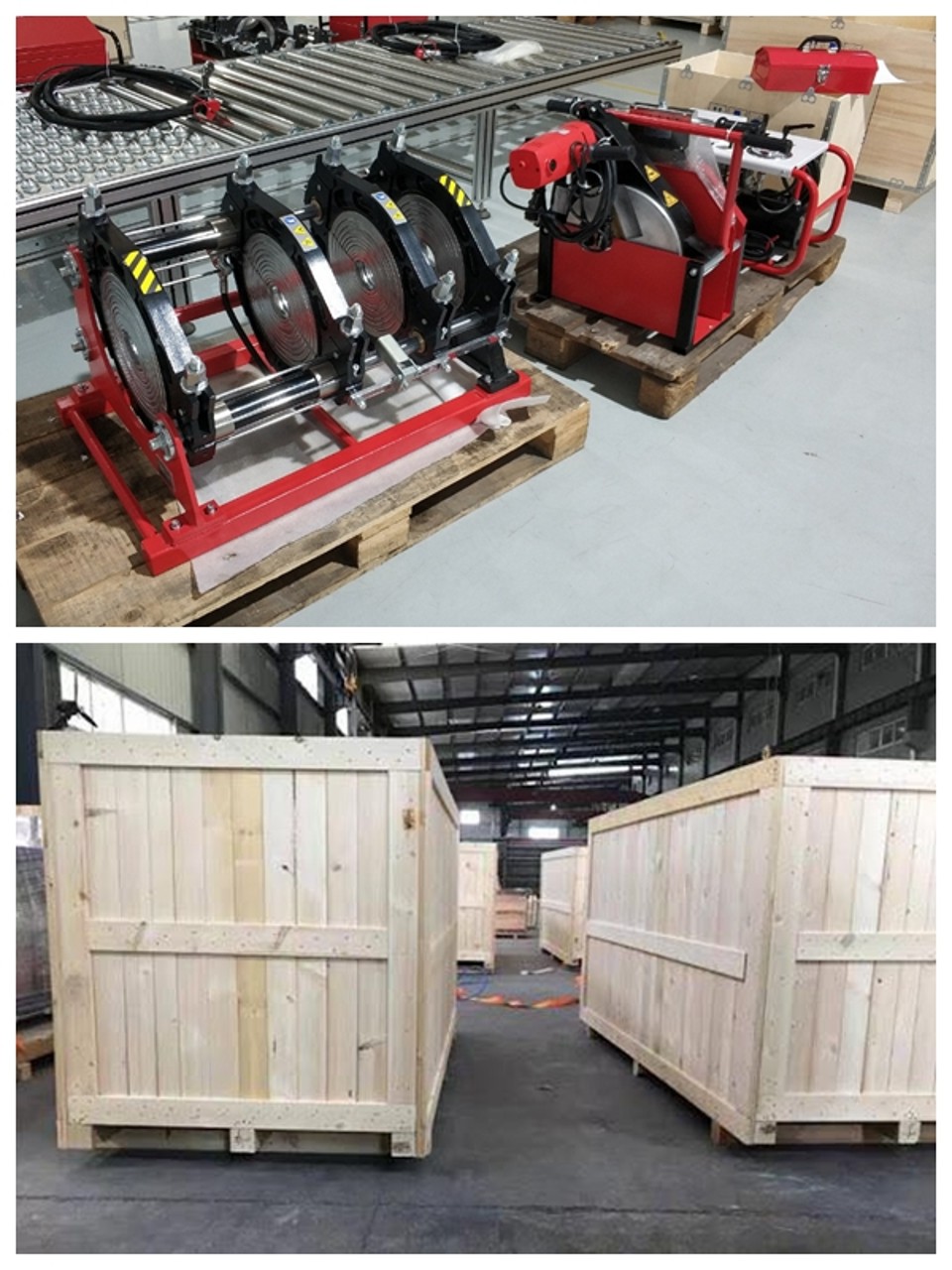

Package
  • Three type of Temperature control, constant Temperature, manual single and double temperature control, Individual temperature control of heating mirror. Functions temperature adjustment, temperature display, overheating alarm and automatic retrieve of environment temperature, heating mirror and sockets coated PTFE, trustable quality.

  • Reasonable structure.
    Compact and good exterior.
    Simple and convenient operation.
    International warranty 12 months.

Model

RH160-2M

RH 160-4M

RH 200-2M

RH 200-4M

RH 250-2M

RH 250-4M

Welding Range

63-160mm

63-160mm

63-200mm

63-200mm

90-250mm

90-250mm

Sealing Deviation

≤0.2mm

Temp Control Range

0-300℃

Temp Error

±5℃

Power

1.71KW/220V

1.71KW/220V

2.31KW/220V

2.31KW/220V

2.83KW/220V

2.83KW/220V

Heating Power

1KW/220V

1KW/220V

1.6KW/220V

1.6KW/220V

2KW/220V

2KW/220V

Power of Planing Tool

0.71KW/220V

0.71KW/220V

0.71KW/220V

0.71KW/220V

0.83KW/220V

0.83KW/220V

Total Weight

33KG

45KG

39KG

53KG

67KG

95KG
