High-Quality HDPE Coiled Pipe – Flexible PE100 Coils for Water, Irrigation & Industrial Use


Diameter Range: DN20–DN110mm (1/2 inch–4 inch)

Standard Dimension Ratio (SDR): SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6 – ensuring the right balance of wall thickness and strength for different applications.

Pressure Ratings (PN): PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32 – suitable for low to high-pressure projects.


Packing & Delivery

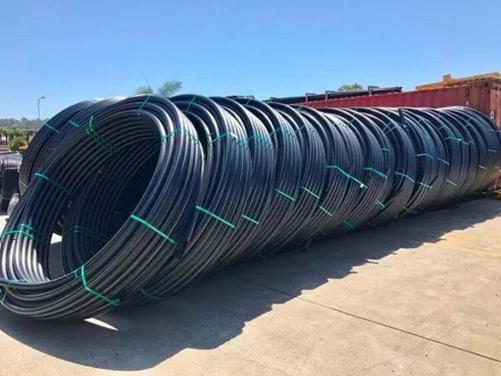

Coil Length: 100–200m coils for DN20–90mm for efficient storage and transport.
Lead Time: 5–10 days depending on order quantity – fast and reliable supply for urgent projects.

Quality Assurance

Raw Material Inspection – ensuring consistent quality from the start.
Finished Product Testing – meeting ISO, CE, and industry standards.
Third-Party Inspection – available upon customer request for extra quality assurance.

Spec(inch)

Spec(mm)

Nominal Pressure

PN5

PN6

PN8

PN10

PN12.5

PN16

PN20

PN25

SDR33

SDR26

SDR21

SDR17

SDR13.6

SDR11

SDR9

SDR7.4

Thickness

Thickness

Thickness

Thickness

Thickness

Thickness

Thickness

Thickness

1/4

16







2.0

2.3

1/2

20






2.0

2.3

3.0

3/4

25





2.0

2.3

3.0

3.5

1

32




2.0

2.4

3.0

3.6

4.4

1 1/4

40



2.0

2.4

3.0

3.7

4.5

5.5

1 1/2

50


2.0

2.4

3.0

3.7

4.6

5.6

6.9

2

63


2.5

3.0

3.8

4.7

5.8

7.1

8.6

2 1/2

75


2.9

3.6

4.5

5.6

6.8

8.4

10.3

3

90


3.5

4.3

5.4

6.7

8.2

10.1

12.3

4

110


4.2

5.3

6.6

8.1

10.0

12.3

15.1

/

125


4.8

6.0

7.4

9.2

11.4

14.0

17.1

5

140


5.4

6.7

8.3

10.3

12.7

15.7

19.2

6

160


6.2

7.7

9.5

11.8

14.6

17.9

21.9

/

180


6.9

8.6

10.7

13.3

16.4

20.1

24.6

8

200


7.7

9.6

11.9

14.7

18.2

22.4

27.4

/

225


8.6

10.8

13.4

16.6

20.5

25.2

30.8

10

250


9.6

11.9

14.8

18.4

22.7

27.9

34.2

/

280


10.7

13.4

16.6

20.6

25.4

31.3

38.3

12

315

9.7

12.1

15.0

18.7

23.2

28.6

35.2

43.1

14

355

10.9

13.6

16.9

21.1

26.1

32.2

39.7

48.5

16

400

12.3

15.3

19.1

23.7

29.4

36.3

44.7

54.7

18

450

13.8

17.2

21.5

26.7

33.1

40.9

50.3

61.5

20

500

15.3

19.1

23.9

29.7

36.8

45.4

55.8


22

560

17.2

21.4

26.7

33.2

41.2

50.8

62.5


24

630

19.3

24.1

30.0

37.4

46.3

57.2

70.3



Ralated Products
Our HDPE (High-Density Polyethylene) pipes are engineered for superior performance in water supply, gas distribution, irrigation, drainage, and industrial piping systems. Manufactured from 100% virgin PE100 material, our pipes deliver exceptional durability, flexibility, and resistance to corrosion and chemicals – making them ideal for both above-ground and underground installations.
  • Diameter Range: DN20–DN2000mm (1/2 inch–80 inch) to meet a variety of project needs
    HDPE piipe
  • Diameter Range: DN20–DN160mm (1/2 inch–6 inch) to meet a variety of project needs
    HDPE Socaet Fittings
  • Diameter Range: DN20–DN160mm (1/2 inch–6 inch) to meet a variety of project needs
    PP Compression Fittings
  • Diameter Range: DN20–DN160mm (1/2 inch–6 inch) to meet a variety of project needs
    Electrofusion Fittings
  • Diameter Range: DN20–DN160mm (1/2 inch–6 inch) to meet a variety of project needs
    PPR Fittings
  • Diameter Range: DN20–DN160mm (1/2 inch–6 inch) to meet a variety of project needs
    Butt Fusion fittings
Buyer Feedback

ITEMS

HDPE ROLLED PIPE, ROLLER PIPE

MATERIAL

POLYETHYLENE (PE100)

PRESSURE RATING

PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25

SIZE RANGE

16-630MM

STANDARD

ISO 4427-2, EN 12201-2, AS/NZS 4130, BS 6920, GB/T 13663.

COLORS

BLACK, BLUE

CERTIFICATE

ISO14001,OHSAS18001,ISO9001,CE

CONNECTION

SOCKET FUSION, BUTT FUSION, ELECTRIC FUSION

Advantages

  • (1)Non-Toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

  • (2)Corrosion Resistance: resist chemical matters and electron chemical corrosion

  • (3)Low Installation Costs: light weight and ease of installation can reduce installation costs

  • (4)High Flow Capacity: smooth interior walls. Result in low pressure loss and high volume

  • (5)Longevity: more than 50 years under proper use

Applications

  • (1)Municipal water supply

  • (2)Commercial & Residential water supply

  • (3)Industrial Liquids transportation

  • (4)Sewage treatment
