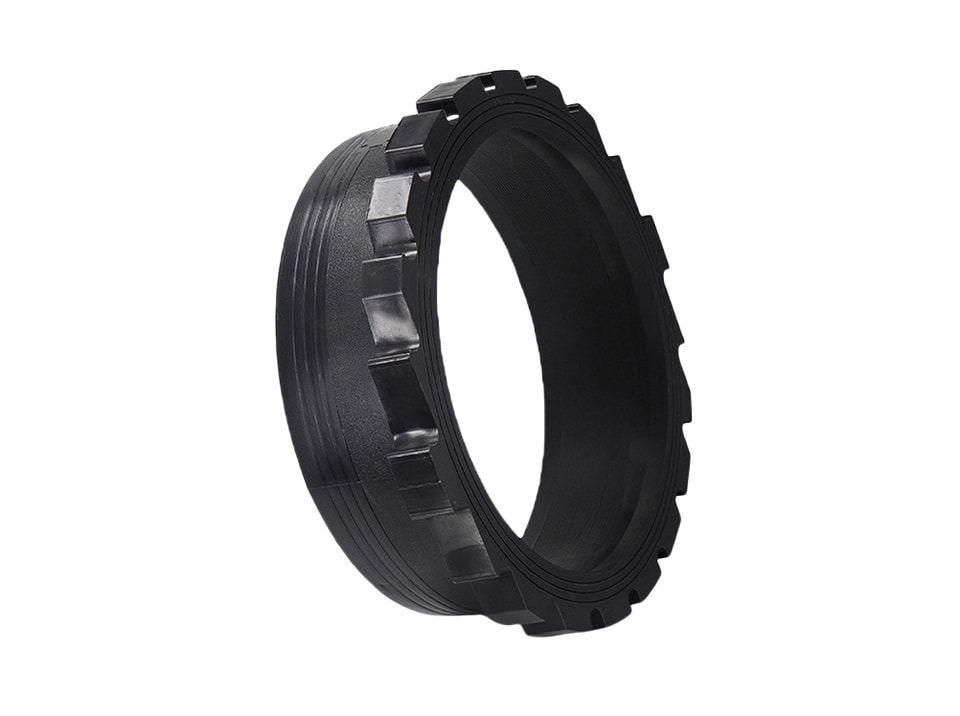

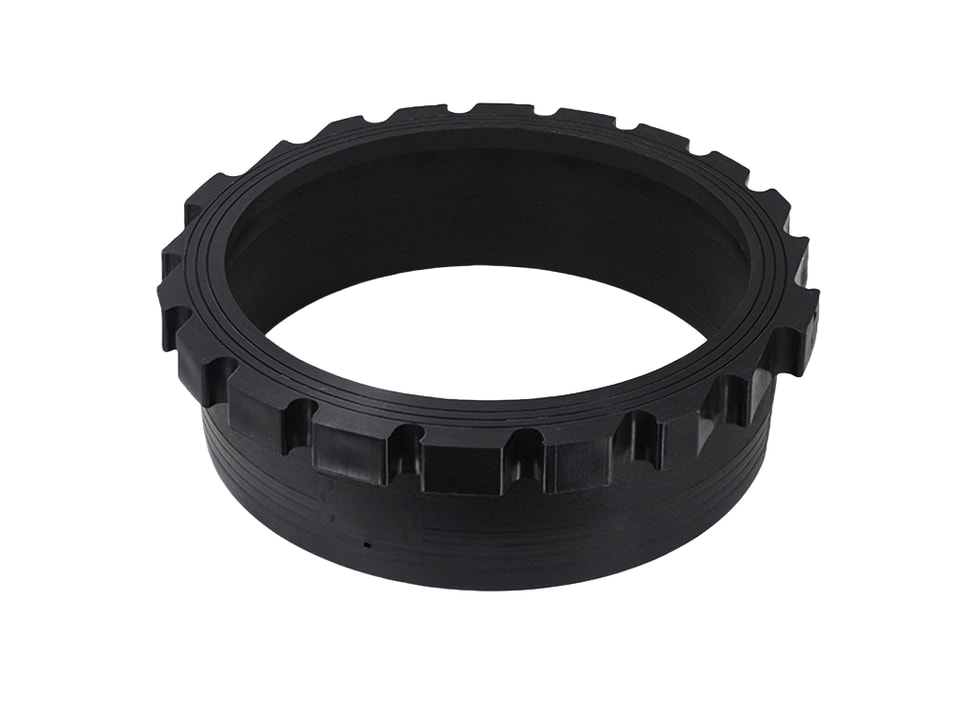

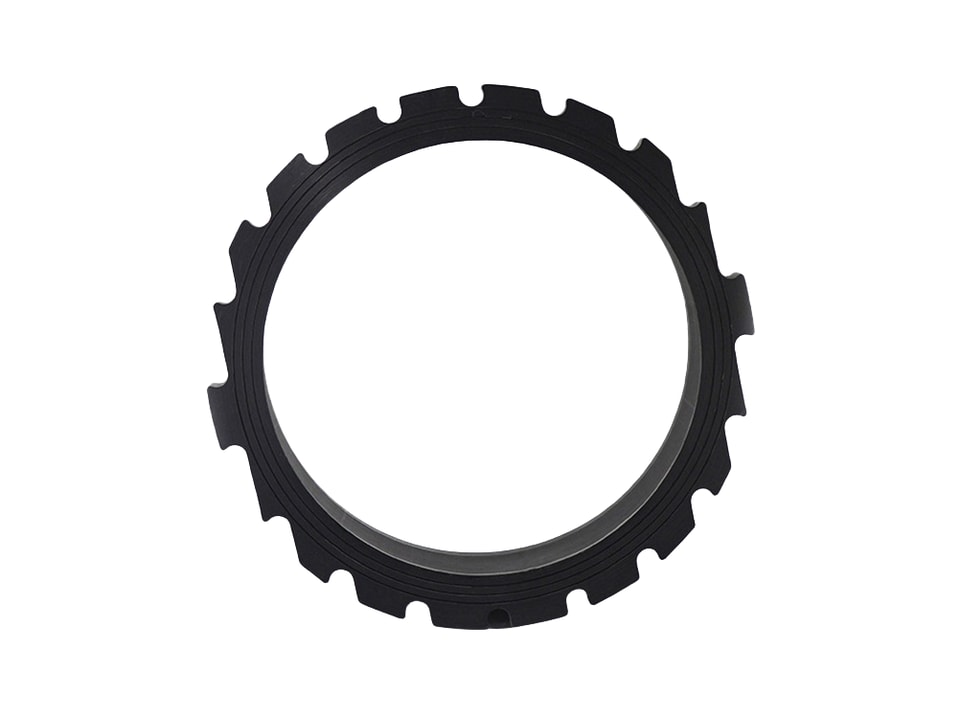

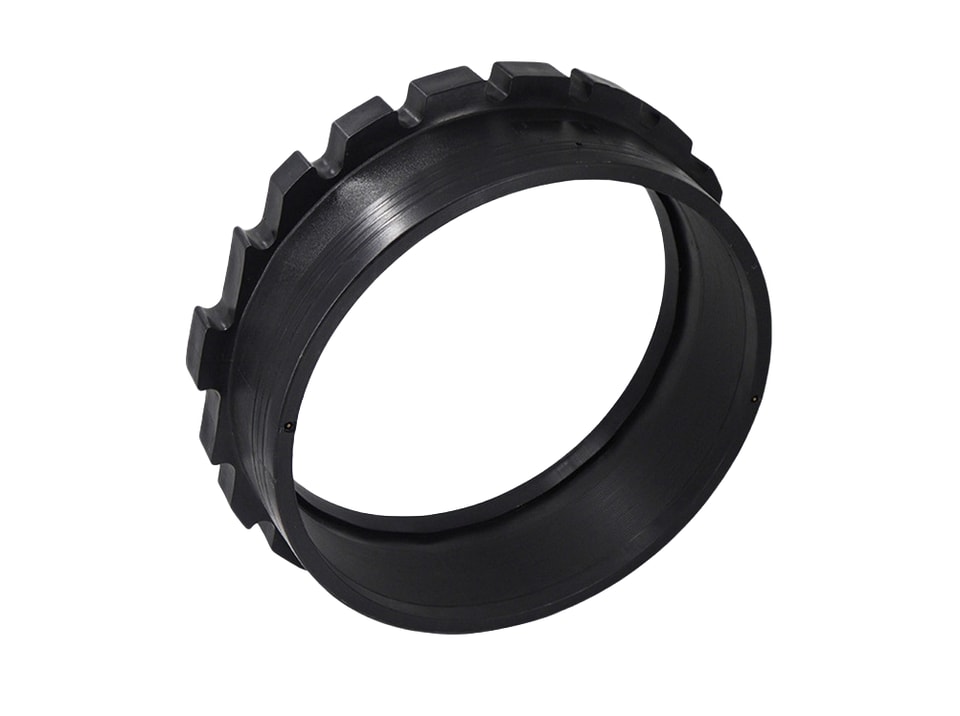

HDPE Electrofusion Large Diameter Flange
ID = Inner Diameter OD = Outer Diameter THK = Thickness H = Height DP = Depth MZW = Fusion Zone Width W = Weight
| SDR-17 | ||||||
| ID | OD | THK | H | DP | MZW | W |
| 355 | 395 | 20 | 150 | 132 | 80 | 4.8 |
| 400 | 444 | 22 | 150 | 135 | 76 | 5.6 |
| 450 | 498 | 24 | 155 | 140 | 77 | 7.2 |
| 500 | 552 | 26 | 190 | 170 | 105 | 10.2 |
| 560 | 620 | 30 | 205 | 180 | 95 | 13.5 |
| 630 | 680 | 25 | 205 | 190 | 115 | 13.8 |
| 710 | 772 | 31 | 270 | 245 | 150 | 25.5 |
| 800 | 872 | 36 | 273 | 250 | 158 | 33 |
| 900 | 995 | 47 | 300 | 285 | 180 | 46 |
| 1000 | 1105 | 51 | 342 | 325 | 138 | 65.35 |
