PPR Female Threaded Tee
  • The REHOME PP-R pipes and fittings has the advantages of health, environmental protection, high strength and light weight,corrosion resistance, smooth inner wall and no scale, easy construction and easy maintenance, long ife and other advantages,which can be widely used in home field in the area of water supply system

Share This Product:
  • PRODUCTS OVERVIEW
  • ADVANTAGE
  • SPECIFICATION

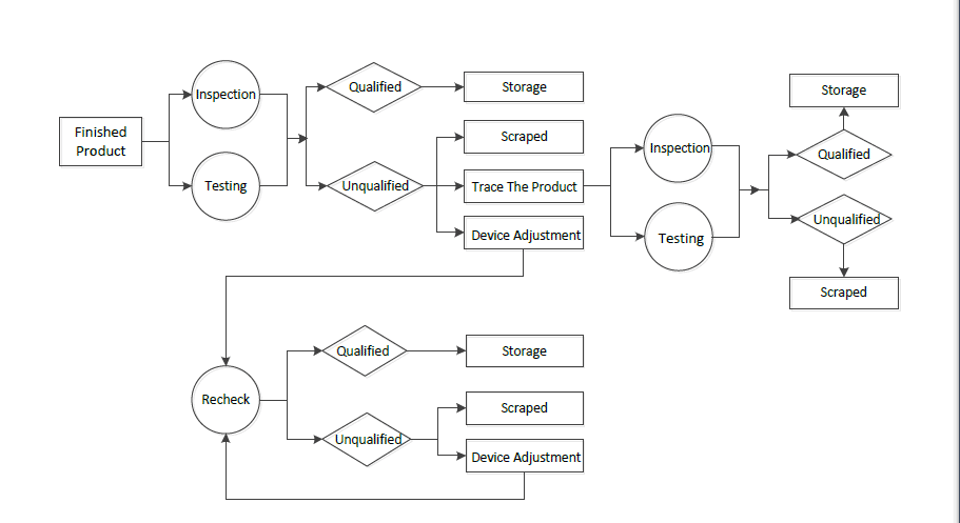

  • FLOWCHART

Items

ppr female threaded tee

material

polypropylene random

size

20×1/2″ – 32×1″ mm

color

white,green,gray

connection

hot melting

pressure

1.25MPa,1.6MPa,2.0MPa,2.5MPa

standard

DIN8077, DIN8078 ,ISO15874

Certification

ISO14001,OHSAS18001,ISO9001,CE,GOST

  • (1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

  • (2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe. Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

  • (3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.

  • (4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

  • (5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

  • (6) Long Life: more than 50 years under normal conditions.

  • (7) Recycled and Environment-friendly.

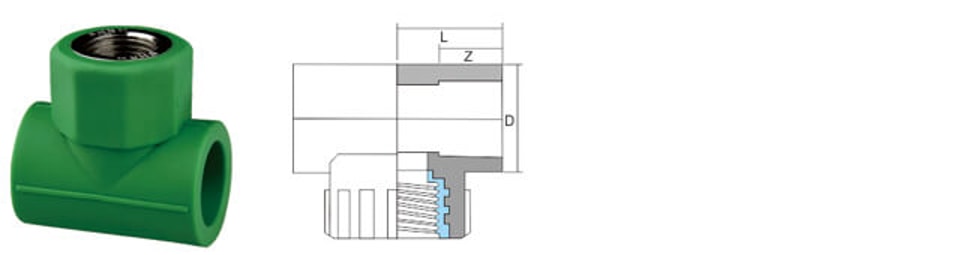

SPECIFICATION (INCH) SPECIFICATION (MM) D L Z
1/2" x 1/2" FPT 20 x 1/2" 28.00 28.00 16.50
1/2" x 3/4" FPT 20 x 3/4" 28.00 28.00 16.50
3/4" x 1/2" FPT 25 x 1/2" 34.80 30.00 18.50
3/4" x 3/4" FPT 25 x 3/4" 34.80 32.00 18.50
1" x 1/2" FPT 32 x 1/2" 42.80 38.00 20.50
1" x 3/4" FPT 32 x 3/4" 42.80 32.00 20.50
1" x 1" FPT 32 x 1" 42.80 36.00 20.50
